Kernel


30


Maximum Speed

km/h

Colour Options

Kernel Angled.png

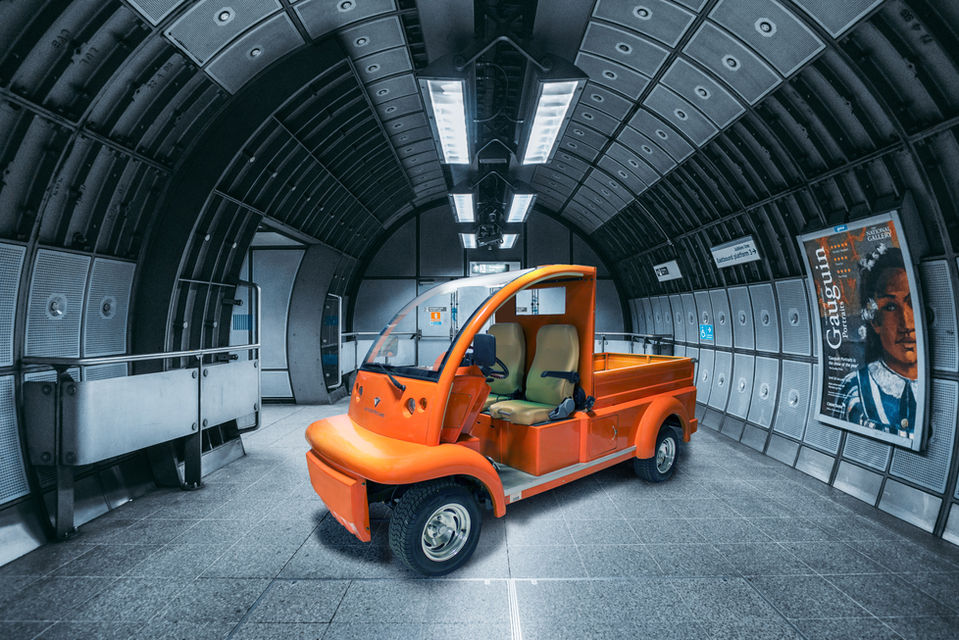

About Kernel

All-purpose industrial vehicle
Windshield
Side Rear View Mirror
2 Set of 2-Point Seat Belt
Onboard Charger
Lighting System
Windshield Wiper
Hydraulic Lifting System for Rear Cargo Bed
Four Wheel Hydraulic Drum Brake and Foot Parking Brake
Digital Instrument Panel
20.5 x 8.0-10 Tire
6J-10 Steel Wheel
Aluminum Wheel Cap

2024_other_price and spec_price delete_KERNEL.jpg

Specifications

Fundamental

Seating Capacity

Maxmium Speed

Range

Turning Radius

Climbing Ability (% Graded)

Power Train

Color Options

Horsepower

Battery

Charger​

2 seats

32 km/h

60 km

4 m

15%

48v DC / 3.8kW

6 Color Options

5.1 Horsepower

Flooded Lead Acid Deep Cycle

High Frequency, On-board Smart Charger

Standard Package

  • 12" Aluminum Wheel

  • Heavy Duty Flatbed with Folding Tailgate

  • Instrument Panel

  • Digital Instument Panel

  • Large Bench Seat

  • Automatic Transmission System

  • Side Mirrors

  • Comfortable Armrests

  • Audible Reverse Warning

  • Automotive Paint with Clear Coat Finish

  • Fog Lamps

  • Automotive Style Dashboard

  • Floor: Rubber, Non-Skid Textured Surface

Body & Chassis

Frame

Body

Flatbed

Welded Steel

Plastic + Fiberglass

Galvanized Steel

Steering & Suspension & Brakes

Steering

Front Suspension

Rear Suspension

Brakes

Rack and Pinion + Electric Power Steering

Independent, Helix Spring w/ Shock Absorber

Plate Spring w/ Shock Absorber

4-Wheel Hydraulic Drum Brake +

Foot Parking Brake + Regenerative Braking

Dimensions

Overall Length

305 cm (120'')

Overall Width

140 cm (55.1'')

Overall Height

180 cm (70.9'')

Overall Weight (w/ Batteries)

730 kgs (1609lbs)

Wheelbase

204 cm (80.3'')

Ground Clearance

14 cm (5.5'')

Front Wheel Tread

114.3 cm (45'')

Rear Wheel Tread

114.3 cm (45'')

Flat Bed Length

160 cm (63")

Flat Bed Width

99 cm (38.9")

Flat Bed Height

25 cm (9.8")

Flat Bed Load Capacity

500 kg (1102lbs)
